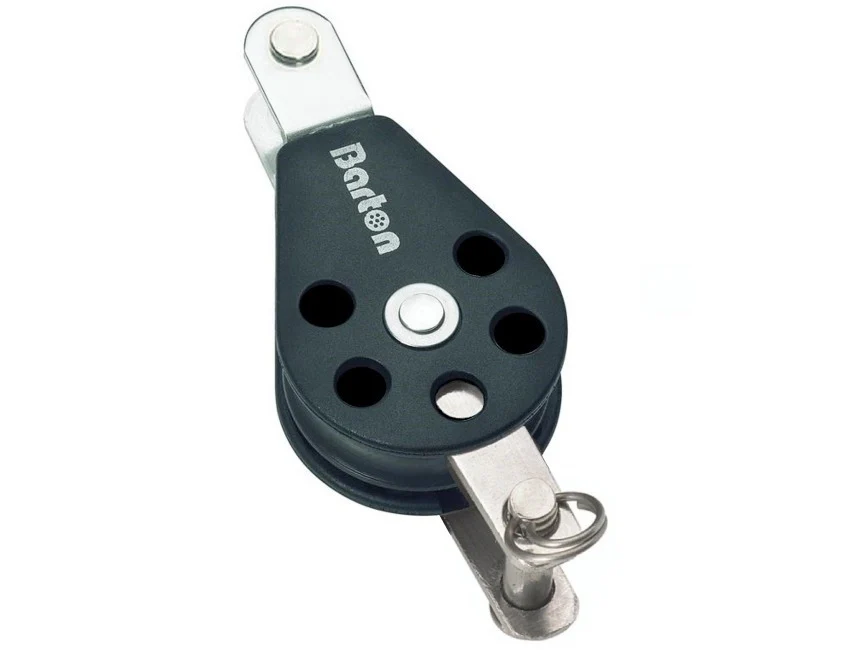

Barton Single, Fixed Eye Clevis Pin + Becket - Plain Bearing Block S3 - N03091
Size 3
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 45mm x 13mm (1 3 /4 x 1/2")
Maximum Rope Diameter: 10mm ( 3 /8")
Breaking Load: 800Kg (1763 lbs)
Safe Working Load: 400Kg (881 lbs)
Length: 91mm
Weight: 74g
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Size 3
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 45mm x 13mm (1 3 /4 x 1/2")
Maximum Rope Diameter: 10mm ( 3 /8")
Breaking Load: 800Kg (1763 lbs)
Safe Working Load: 400Kg (881 lbs)
Length: 91mm
Weight: 74g
